Hologram Shooting System

AutoQTVRmini Application System

Available for Holograms of 20cm square or less.

Basically, AutoQTVR is available to shoot any kind of object, regardless 2D or 3D, that changes the aspect depending on your view points or viewing angles.
This system is designed for shooting holograms of 1 to 20 cm square that can be seen on the 2 dimensional object such as credit cards and currencies.

System configuration
  • IBM PC Compatibel Windows2000/XP(RS-232C, Firewire)
  • AutoQTVRmini
  • Hologram holder:254mm(W) x 223mm(H)
  • Spot light and its rotation arm:75cm(L)
  • Camera: NIKON D1/D1X/D1H, CANON EOSiunder developingj, Digital Video Camera such as Sony VX-1000/2000

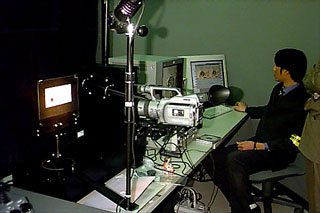

[Photo right]AutoQTVR mini equipped with the hologram holder and a digital video camera.
[Photo right below]T-type camera arm and the hologram holder.


[ Hologram Shooting System Specifications]
Camera arm rotator
  • Motor: Stepping motor
  • Rotation accuracy: 1 degree, Rotation speed: about 360 degree/min.
  • Rotation angle: Vertical tilt -35~90 degree
  • T-type camera arm: R=45 to 50cm A L50cmiShorter arm is available as an option to make short distance shootingj.
Object rotator
  • Motor: Stepping motor
  • Rotation accuracy: 0.1 degree, Rotation speed: about 360 degree/min.
  • Rotation angle:Horizontal pan 360 degree
  • Rotation pole: L=7.5cm~13cmiLonger arm is available as an option to shoot shorter objectj.
  • Hologram holder:254mm(W) x 223mm(H)
[Control Software(Bundled)]
  • ObjectMaster DC: This software controls two rotators and a digital camera such as Nikon D1/D1X/D1H and it allows you to import TIFF or JPEG files for each shooting through Firewire or USB interface. The image size depends on the specifications of the digital camera.
  • ObjectMaster DV: This software controls two rotators and a digital video camera such as Sony VX1000 and it allows you to import DV images for each shooting through Firewire interface. In case of NTSC camera, the image size becomes 640x480 pixels.
[ Sample movies]
Sample movies shown below are shot by using AutoQTVRmini with a digital video camera in 1997 and compressed to 320x240-pixel movie.
* Specifications shown in this web page are subjects to change without notice.
