AutoQTVRstd
Computer controlled omniview shooting system Standard version
Available for wide range of omniview shooting
AutoQTVRstd is a suitable system for shooting objects of 20 to 60 cm cube. Size of shooting object is limited by the camera arm size, but in case of horizontal shooting alone, you can shoot bigger objects of about 200 cm high and 100 kg such as a human body by using an optional Big Rotator. When using another optional shorter camera arm, you can make a macro shooting as well even by using the AutoQTVR standard.
The maximum size of AutoQTVRstd becomes about 140cm（L）x 820cm(D) x 200cm(h), but you can take the mashine to a couple of pieces so that you may transport it easily.

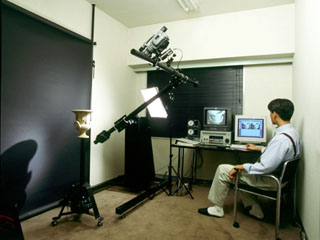

[Photo] An AutoQTVR standard equipped with a digital video camera. When using a NTSC digital camera, the original images you can import from the camera becomes DV images of 640x480 pixels. In case of using a digital camera, the image size depends on the specification of the camera.
[Standard system configuration]
- IBM PC compatible Windows2000/XP
- AutoQTVRstd（T-type camera arm rotator, Object rotator, Built-in stepping motor controller, Power cable, Serial cable, Control softare "ObjectMaster"）
- Camera: NIKON D1/D1X/D1H, CANON EOS（under developing), Digital video camera
- Lighting equipments and back sheet
[ AutoQTVRstd Specifications ]
 |
Camera arm rotator
- Motor: Stepping motor
- Rotation accuracy: 1 degree, Rotation speed: about 360 degree/min.
- Rotation angle: Vertical tilt -35~90 degree
- T-type camera arm: R=70 to100cm （Shorter arm is available as an option to make Macro shooting）.
- Position of rotation axis: about 100cm from the bottom.
- Dimension:200cm（h）x 180cm（d）x 72cm（w）
- Power:AC100V（100W）
- Weight: about 60kg
|
|
 |
Object rotator（Standard）
- Motor: Stepping motor
- Rotation accuracy: 0.1 degree, Rotation speed: about 360 degree/min.
- Rotation angle:Horizontal pan 360 degree
- Rotation pole: 50cm~100cm from the bottom
- Turn table: D=15cm(Standard)
- Optional turn table set: 10cm | 20cm | 25cm | 30cm | 50cm
- Dimension: Max.100cm（h）x 40cm（d）x 40cm（w）
- Weight: about10kg
- Power: AC100V（100W）
Shooting target
- Size: 20~70cm cube.
- Weight 15kg
|
|
 |
Large scale object rotator"Big rotator" (Option)
- Motor: Stepping motor
- Rotation accuracy: 0.1 degree, Rotation speed: about 360 degree/min.
- Rotation angle:Horizontal pan 360 degree
- Lifter:30cm~100cm from the floor ground.
- Turn table: D=60cm
- Optional turn table:60cm | 80cm | 100cm
- Dimension: Max.100cm（h）x 60cm（d）x 50cm（w）
<
- Power: AC100V（100W）
- Weight: about10kg
Shooting target
- Size: About100cm cube and 100 kgmax. 100 x100 x 200(h) in case of Horizontal rotation only.
- Weight: about20kg
|
|
[ Control Software(Bundled)]
- ObjectMaster DC: This software controls two rotators and a digital camera such as Nikon D1/D1X/D1H and it allows you to import TIFF or JPEG files for each shooting through Firewire or USB interface. The image size depends on the specifications of the digital camera.
- ObjectMaster DV: This software controls two rotators and a digital video camera such as Sony VX1000 and it allows you to import DV images for each shooting through Firewire interface. In case of NTSC camera, the image size becomes 640x480 pixels.
[ Sample movies ]
Sample movies shown below are shot by using AutoQTVRstd with a digital video camera in 1996 and compressed to 320x240-pixel movie.
* Specifications and design shown in this web page are subjects to change without notice.
